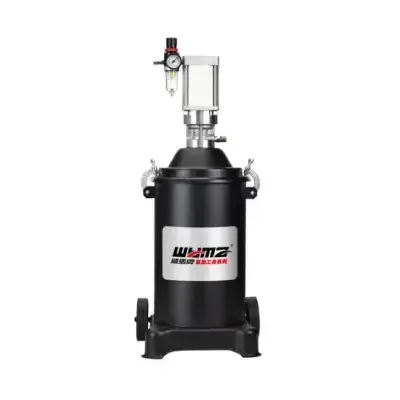

20L/5gal Pneumatic Grease Pump

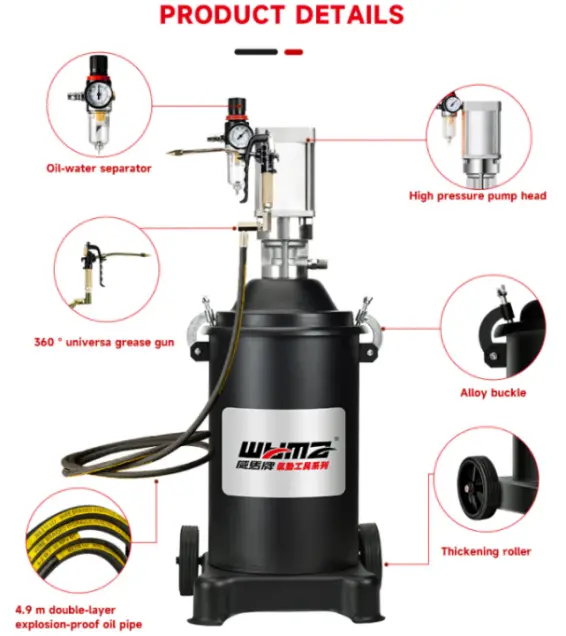

At WYMA, we have built our 20L/5gal Pneumatic Grease Pump for industrial lubrication needs where value matters. Every unit carries MD-CE certification that meets EU machinery rules, and it pushes grease smoothly even at high pressure. Because we sell direct from our factory, we stock enough for immediate shipping worldwide. When you need replacement parts, we support you with items like our 360 degree universal grease gun, double explosion-roof grease hose, air pressure regulator, oil-water separator, pump head and thickened roller made for longer use.

We have earned trust showing this 20L/5gal Air Grease Pump at CIHF, CISMEF, and AIFME–we know it holds up what you need it in heavy-duty application daily. We control our own production process means we test thoroughly during production and stand behind it after your purchase. We offer replacement parts and technical guidance so your equipment keeps running longer.

We bring 15+ years of mechanical know-how in lubrication solutions to every pump. We invite you to contact us now and experience this reliable performance at our factory price.

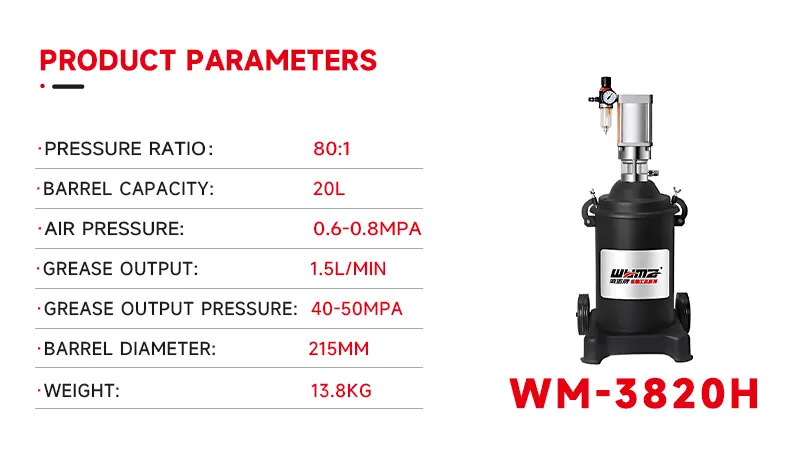

Product’s Parameter (Specification)

Product’s Applications

We design this 20L/5gal Air Grease Pump for demanding lubrication jobs in ports, construction zones, and assembly lines. It can handles NLGI #0 to #3 lithium greases and 300-degree high-temperature greases effectively which has outperformed many of its more expensive competitors.

This pump achieves stable operation in cold conditions with its 70L total displacement , 40-50 MPa air pressure, 80:1 pressure ratio and 1.5L/min output, it excels in mining rigs, farm equipment, and marine applications where bulk greasing needs real value.

You'll see our pump working daily on heavy equipment bearings, large vehicles, and industrial plants that require powerful grease injection. It maintains high flow and pressure across extreme temperature ranges. Consider it for locations needing consistent high-pressure greasing without premium costs.

Product’s Purchase Guide

As professional pneumatic tool makers, we focus on delivering air grease pumps that give you steady performance across workshop floors and busy ports. Below is a complete guide to grease selection, pump head performance, and scenario adaptation.

The NLGI standard classifies grease into nine consistency grades #000-6 based on penetration, with higher numbers indicating harder grease.These three grades are commonly used in industry:

NLGI #0 best performer through centralized systems requiring high fluidity. NLGI #1 keeps moving well with its soft, paste-like feel, making it reliable for precision bearings or when temperatures drop. The industry standard NLGI #2 balances flow and stickiness perfectly, it’s the go-to choice for daily maintenance on machinery and vehicles in typical operating temperatures. Do you need a grease with high viscosity and pressure resistance? The NLGI #3 delivers with extra thickness and pressure resistance. This grade handles punishing high-heat situations and demanding equipment like excavators or port machinery.

Note: In cold climates, grease viscosity increases and fluidity decreases, potentially causing pumping difficulties or lubrication failure. Regardless of grease type you choose, balance seasonal and operational needs. In winter or cold regions, reduce viscosity by one grade to ensure smooth pumping.

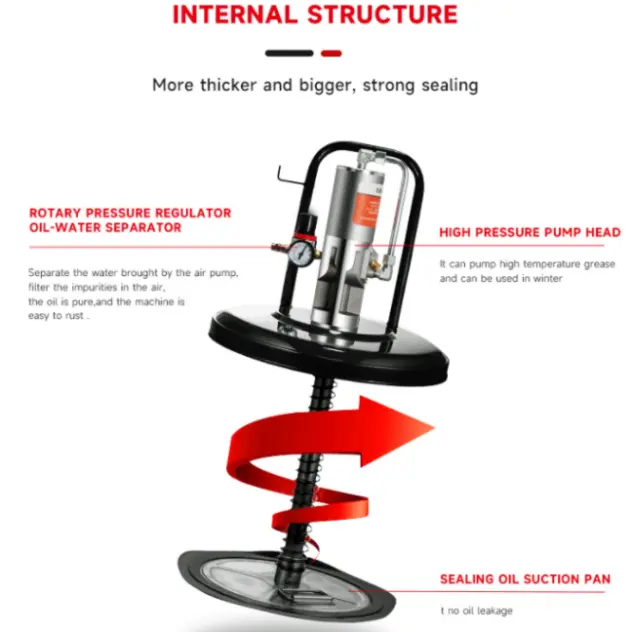

Pump Heads: Core Performance Differences

Pump heads determine grease compatibility, output volume, and pressure. WYMA offers five professional air grease pump heads:

Standard Type: Small/Common Round Head

Compatible with NLGI #0-3 grease at normal temperatures; only NLGI #0-2 recommended in winter. The small round head delivers 0.9 L/min, while the common round head reaches 1.2 L/min (higher flow than high-pressure heads). Low-pressure design cannot handle high-viscosity grease or high-temperature grease below 300 Celsius. Cost-effective for light equipment with low-viscosity grease in warm regions.

High-Flow All-Rounder: Square Head

Piston-driven grease compression design supports high-temperature grease below 300 Celsius and NLGI #3 viscous grease in winter. The highest flow rate in the whole series: 1.5 L/min. Combines high pressure and high flow for the best cost-performance ratio.

Viscous Grease Specialized: High-Pressure Head

Designed with fewer seals and concentrated pressure for NLGI #3 even NLGI #3+ grease and high-temperature grease below 300 Celsius. Moderate pricing with 0.9 L/min flow rate. Lower flow but excels in extreme cold environments.

Small-Piston High-Pressure Head

Compact piston boosting design enhances pressure for high-viscosity grease. Flow rate: 0.9 L/min. Compatible with NLGI #0-3 grease and high-temperature grease below 300 Celsius. Suitable for precise high-viscosity lubrication in cold weather. Higher price.

High-Flow Low-Temp Head: Large Head

We call this our large-bore suction head. It gives you a 1.3 L/min flow rate which is the second-highest flow across our entire product line. This head handles NLGI #0 through #3 greases perfectly in standard operating temperatures. When winter use in, stick with NLGI #0 to #2 greases for reliable performance. It can't run 300-degree celsius greases through this head, please note this. Viscous greases also don’t perform well here, pressure efficiency drops noticeably with thicker formulas. It is more expensive and serves high-flow applications best in regions where temperatures stay mild.

Choose WYMA pneumatic grease pumps with professional pump heads and grease solutions to tackle complex challenges. For custom configurations, contact us now to get the professional technical support.
