Aluminium Alloy Pneumatic Diaphragm Pump

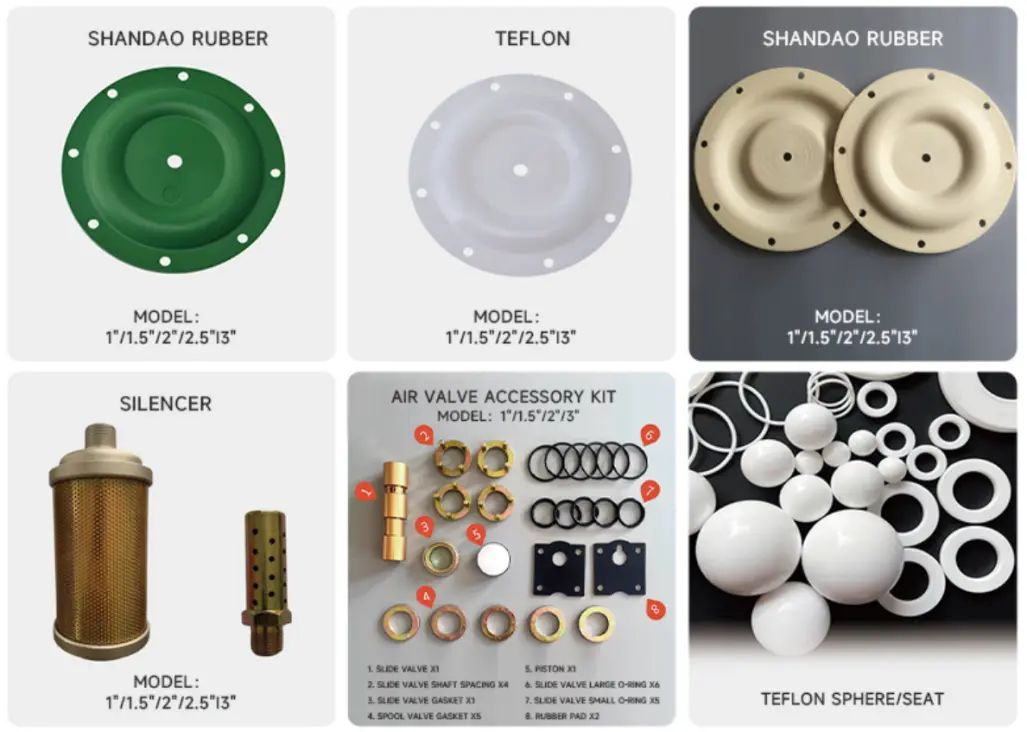

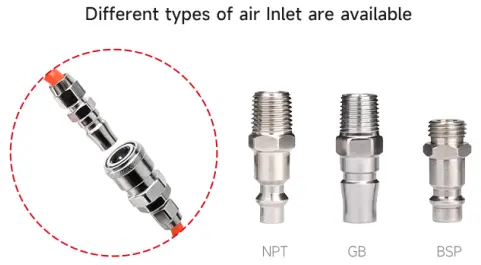

Our WYMA® High-Value Aluminium Alloy Air Diaphragm Pump represents our newest engineering effort. We built it with corrosion-resistant aluminium alloy, achieving MD-CE certified durability specifically for demanding, mission-critical industrial settings. You can get this pump at factory-direct pricing, meaning you skip the middlemen markups without any quality sacrifice. We keep consistent stock for fast global delivery and we supply easy-to-replace parts like bracket, air pressure regulate guage, multi-standard connectors(NPT, GB, BSP), oil pipe connectors, air hose, oil pipe, pneumatic tool lubricants, 304 stainless steel buffer cup (cylindrical, oval, dual-outlet), suction cup set: stainless steel filter, aluminum alloy suction cup, seals, feed pipe (spec: 10mm/12mm*1000mm, white), return pipe (spec: dia. 85mm, blue), PTFE/Santoprene diaphragms and seals alongside reliable after-sales support. We also support ODM/OEM/OBM customization services. Welcome to contact our professional team to discuss the customization details.

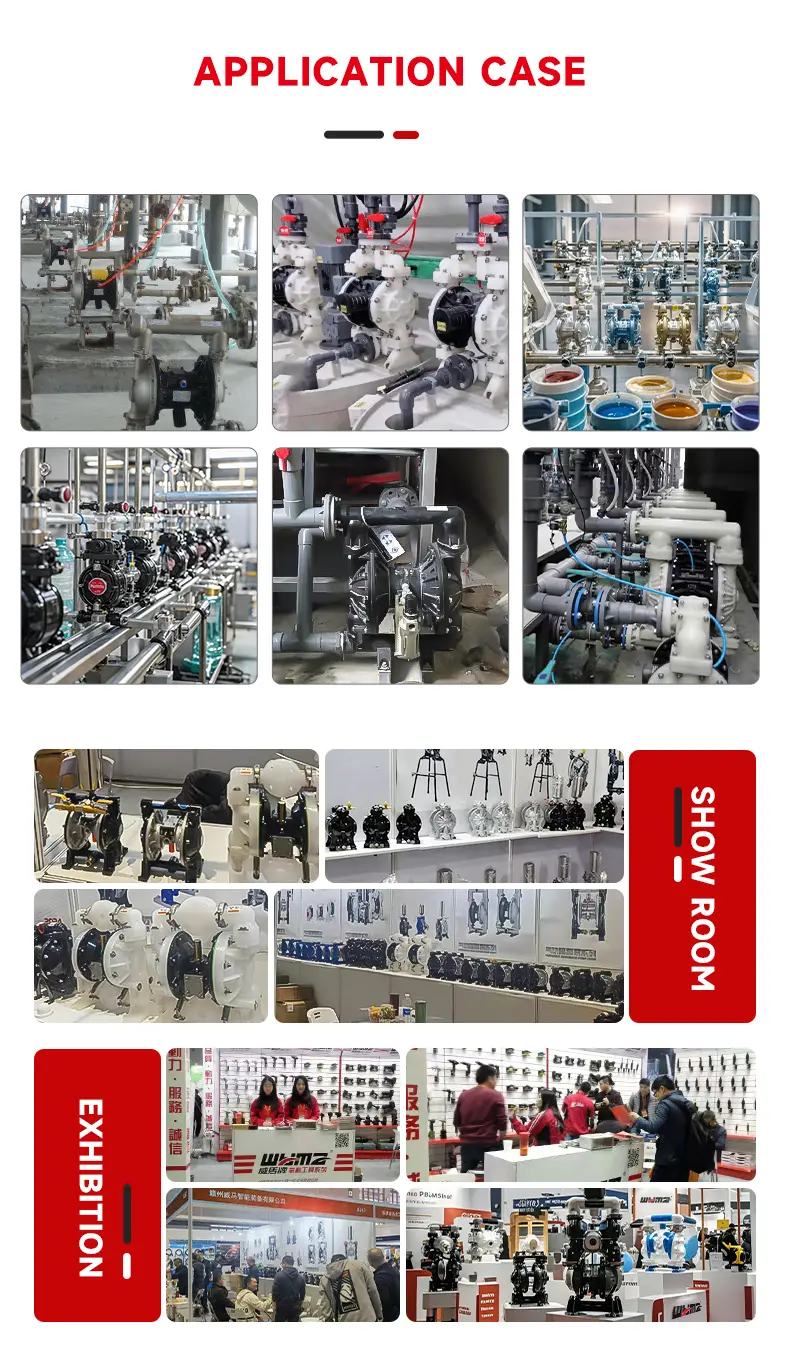

Do you want to experience its performance for yourself? We actually demonstrated this pump’s leak-proof performance and strong suction power ourselves on the floor at CIHF, CISMEF, and AIFME EXPOs.

Product’s Parameter (Specification)

Product’s Applications

Ideal for demanding industries, the ‌Aluminium Alloy Air Diaphragm Pump‌ excels in:

‌Petrochemical Industry‌: Handling corrosive chemicals, oils, and solvents.

‌Mining/Construction‌: Transferring abrasive slurries, sludge, and wastewater.

‌Automotive/Coatings‌: Pumping high-viscosity paints, adhesives, and lubricants.

‌Ceramics/Paper & Pulp‌: Pumping glazes, pulp, and high-viscosity fluids.

‌Metallurgy/Foundry & Dyeing‌: Processing molten metal residues and dyes.

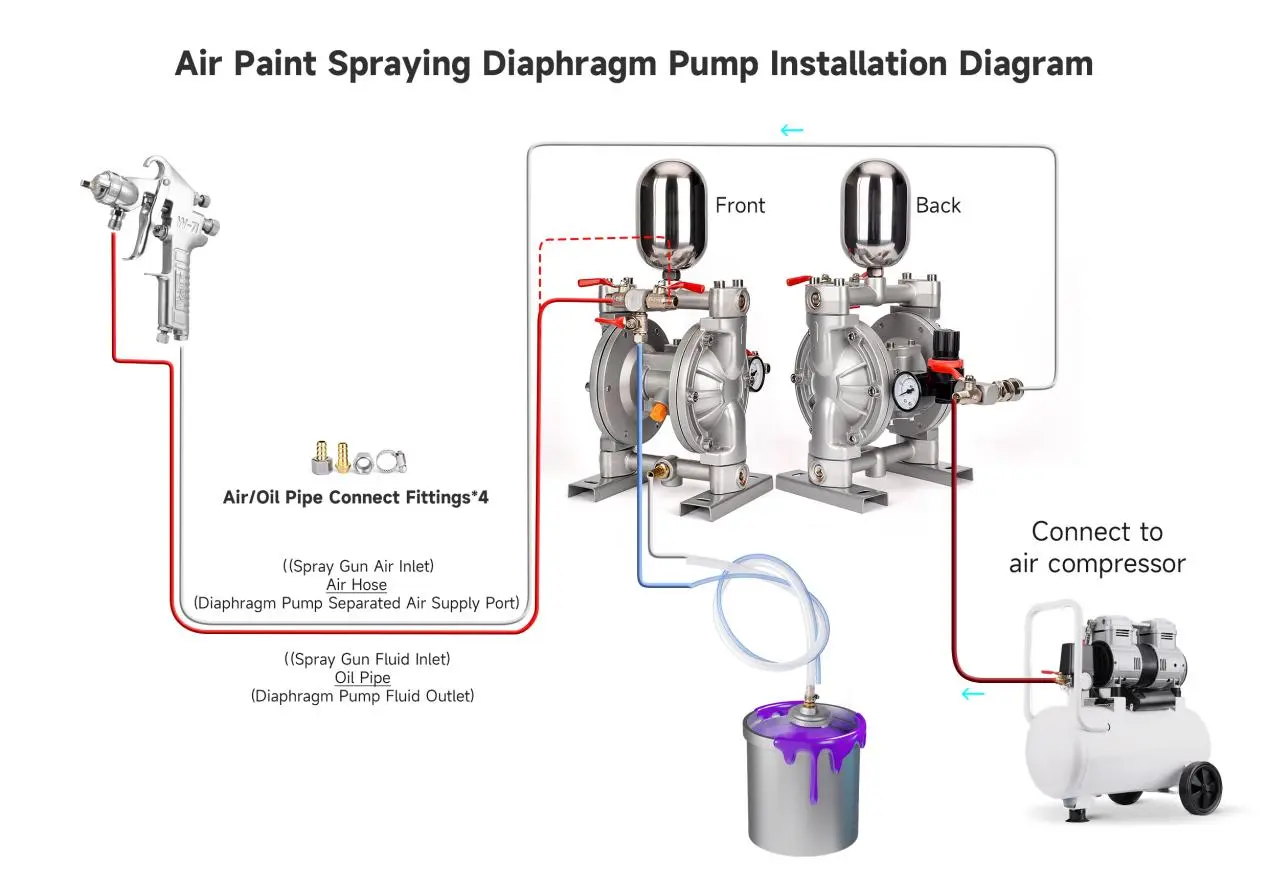

Do you want to know how to easily integrate this pump into your spraying operation? Here's the operation guide for tubing connection when connecting this pump to the paint bucket:

You need to prepare wrenches or other connection tools. First, locate the suction port on the pump body. Run the feed pipe from here and immerse it into the paint bucket. Next, the return port on the pump should be connected back to the paint bucket using another hose. These two steps must not be reversed. Proceed to connect the fluid outlet of the pump to the fluid inlet of the spray gun. Another critical point: you will find an air outlet on the pump, which needs to be connected to the air inlet of the spray gun. Finally, attach the air supply hose from the air compressor to the pump's air inlet.

After completing the connections, adjust the air supply pressure from the compressor (though the appropriate pressure depends on the respective paint and spray gun models). Open the air valve, then start pulling the spray gun trigger. Once activated, paint delivery commences promptly—the entire process is responsive and smooth-flowing.

Lightweight yet durable, the ‌Aluminium Alloy Pneumatic Diaphragm Pump‌ ensures safe, efficient operations in explosive environments and complex fluid transfer tasks, outperforming traditional pumps across industries.

Product’s Feature And Details

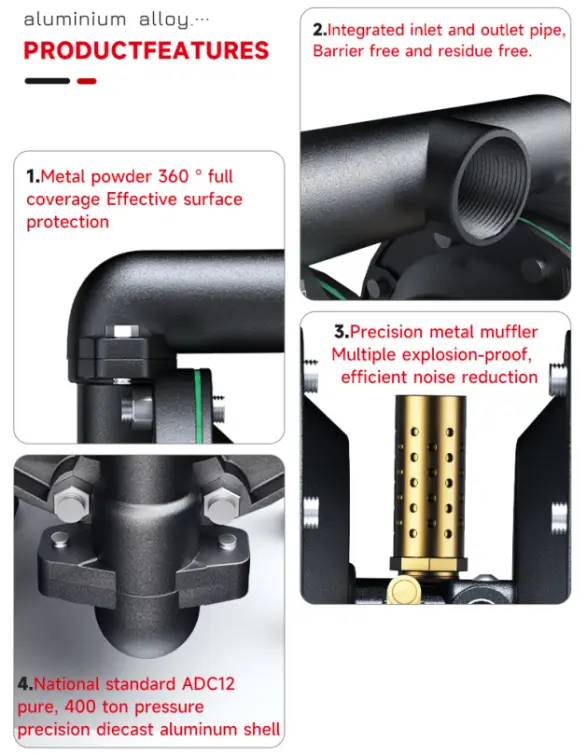

Premium Construction for Longevity

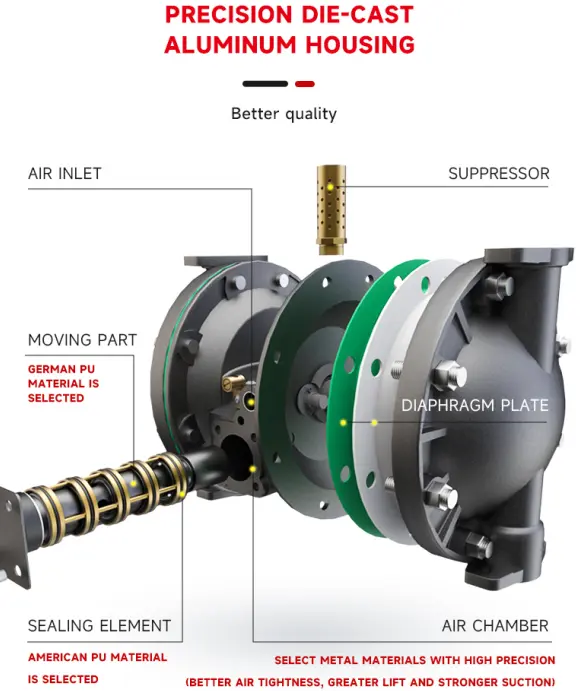

We build our Aluminium Alloy Air Diaphragm Pump to last. You'll find a complete 360-degree metal powder coating protecting its surface for long-term durability. The housing uses ADC12 pure aluminum formed in a 400-ton die-casting process. This method gives us crack-free housings that maintain their seal reliably over time. Inside, core parts incorporate German and American PU materials known for handling high pressure and resisting wear. And we make the air chamber from a precision high-pressure alloy because it delivers better air tightness, greater lift, and overall stronger construction for our customers. Correct and convenient maintenance matters for customer usage experience: Only need to drip 2 or 3 drops of pneumatic tool lubricants into the air inlet before and after use and then idle for a few seconds to complete the maintenance, so that the equipment can run stably for a long time.

Enhanced Flow and Reliability Design

You will find that the aluminum alloy pneumatic diaphragm pump adopts an integrated inlet and outlet pipe design which stops residue buildup and prevents blockages completely. A large suction cup includes our high-density filtering device, which is essential for keeping impurities out of the pump body. This directly protects the equipment’s operational stability. For the diaphragm, we chose imported Teflon/Santoprene material. It effectively stands up to acids and alkalis, keeping performance consistent even when conditions get tough, which we know matters in your works.

Quiet Safety and Versatile Operation

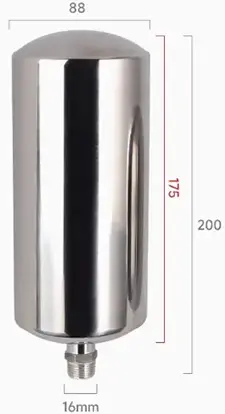

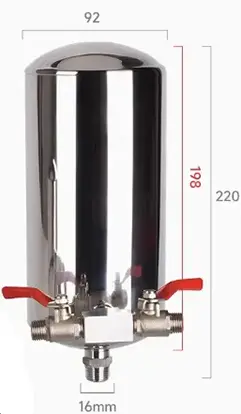

The precision-built metal suppressor makes this pump both quiet and explosion-proof during use. Its buffer cup comes in food grade 304 stainless steel, and we offer different styles like oval, cylindrical, and dual-outlet so you can match it precisely to your application. Besides, we offer following two special models.

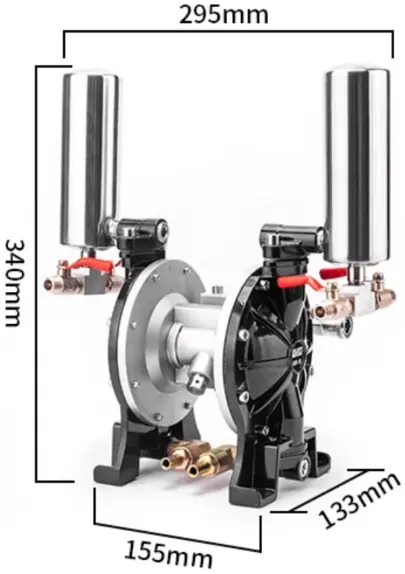

Double in and single out: input two different paints at the same time and mix them together to use.

Double in and double out: input and output two different paints at the same time without interfering with each other, one machine can replace two.

We designed this Aluminium Alloy Pneumatic Diaphragm Pump to be a safe, adaptable solution across many industrial settings. The flexibility and safety features reflect how we think about equipment meant for real-world use.
